Cladding plates are bonded by explosion welding or rolling. Various combinations of metal cladding plate are widely used in petrochemical, water treatment, metallurgy, energy and power, pulp & paper and other fields.
Carbon steel
Stainless Steel
Alloy Steel
Titanium & Titanium Alloy
Nickel & Nickel Alloy
Stainless Steel & Duplex Steel
Copper & Copper Alloy
Silver, Zirconium, Tantalum
As a leading cladding plate manufacturer, Fugo offer various material combination, including stainless-steel clad plates，titanium clad plate ,copper clad plate and nickel clad plates.
We are also a trusted stockist of titanium alloy plates and nickel alloy plates,for certain clad plates such as titanium clad plate and nickel alloy clad plate,we can provide clad plates with very fast delivery times to ensure that customers receive timely supplies even in urgent situations.
Our cladding plates and bi-metallics are expertly manufactured using explosion welding，a technique that creates exceptionally strong metallurgical bonds. Additionally, we employ rolled bonding techniques to achieve uniform and durable layered structures.
These versatile plates serve diverse industrial applications including petrochemical processing, water treatment systems, metallurgical operations, and power generation. They are exported to markets across Europe, India, the United States, and beyond, delivering proven reliability and longevity in challenging environments.
|
Cladding layer |
Available Grade |
|
Titanium & Titanium Alloy |
Gr.1, Gr.2, Gr.3, Gr.4, Gr.5, Gr.7, Gr.9, Gr.11, Gr.12, Gr.16 |
|
Stainless Steel & Duplex Steel |
TP304/304L, 316/316L,310/310S, 321,347,317/317L,410/410S, S31803, S32205, S32750, S32760, S31254 and etc. |
|
Nickel & Nickel Alloy |
UNS N02200, N02201, N04400, N06600,N06625,N06022, N08825, N08800, N08810, N10276 and etc. |
|
Copper & Copper Alloy |
C71500, C70600, C46400, TUI, T2 |
|
Zirconium |
R60702 |
|
Tantalum |
Ta1 |
|
*These are typical Grades. Please consult if your required standard/grade is out of the list. |
|
|
ltem |
Stainless Steel Cladding |
Titanium Cladding |
Nickel Cladding |
Copper Cladding |
|
Total Thickness(mm) |
≥8 |
≥8 |
≥8 |
≥8 |
|
Cladding Thickness(mm) |
1-16 |
1-12 |
2-16 |
2-20 |
|
Maximum Width(mm) |
3600 |
3600 |
3600 |
3600 |
|
Maximum Length(mm) |
16000 |
8000 |
16000 |
16000 |
|
Area(m2)/Plate |
50 |
20 |
50 |
50 |
|
Weight/Plate (t) |
35 |
35 |
35 |
35 |
|
ASTM B898 |
Specification for Reactive and Refractory Metal Clad Plate
|
|
ASME SA263 |
Specification for Stainless Chromium Steel-Clad Plate
|
| ASME SA264 | Specification for Stainless Chromium-Nickel Steel-Clad Plate |
| ASME SA265 | Specification for Nickel and Nickel-Base Alloy-Clad Steel Plate |
| ASTM B432 | Specification for Copper and Copper Alloy Clad Steel Plate |
| EN 13445-2 Annex D | Technical delivery conditions for clad products for pressure purposes |
| GB/T8547 | Titanium clad steel plate |
| GB/T8546 | Titanium clad stainless steel plate |
| GB/T8165 | Stainless steel clad plates,sheets and strips |
| GB/T13238 | Copper Steel Clad Plates |
| NB/T47002 |
Clad Plate for pressure vessel（Part 1: Stainless steel-steel clad plate，Part 2: Nickel-steel clad plate， Part 3: Titanium-steel clad plate，Part 4: Copper-steel clad plate） |
We have successfully supplied stainless-steel clad plates, titanium-steel clad plates, nickel-steel clad plates, and copper-steel clad plates for numerous domestic and international projects, including applications in pressure vessels, towers, shell-and-tube heat exchangers, crystallizers, evaporators, condensers, electrode arms, and etc.
Proven Expertise: With extensive experience in manufacturing high-quality material combinations such as stainless steel, titanium, nickel, and copper bonded with steel, we have successfully delivered materials for a wide range of projects.

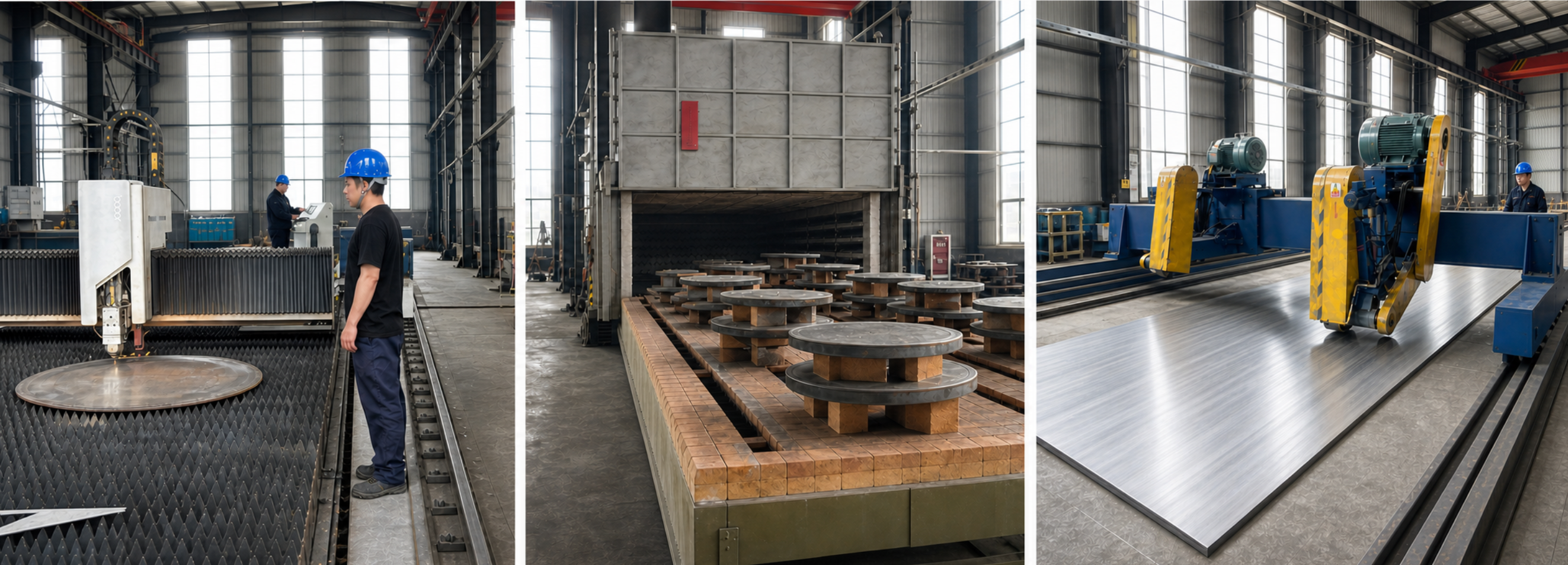

In-House Production: From raw material sourcing to final product inspection, every step of the process is fully controlled, ensuring consistent product quality and on-time delivery.
Stable Supply: We work with a reliable network of domestic and international suppliers to meet the diverse needs of our customers, offering multiple clad material solutions tailored to various project requirements.
Customized Solutions: While two-layer clad plates are common, Fugo Tech also offers multi-layer clad solutions, providing flexibility to address different application scenarios.
Stainless Steel Clad Carbon Steel Plate:ASTM A182 F1 Alloy Steel+ASTM A240 TP316/304L

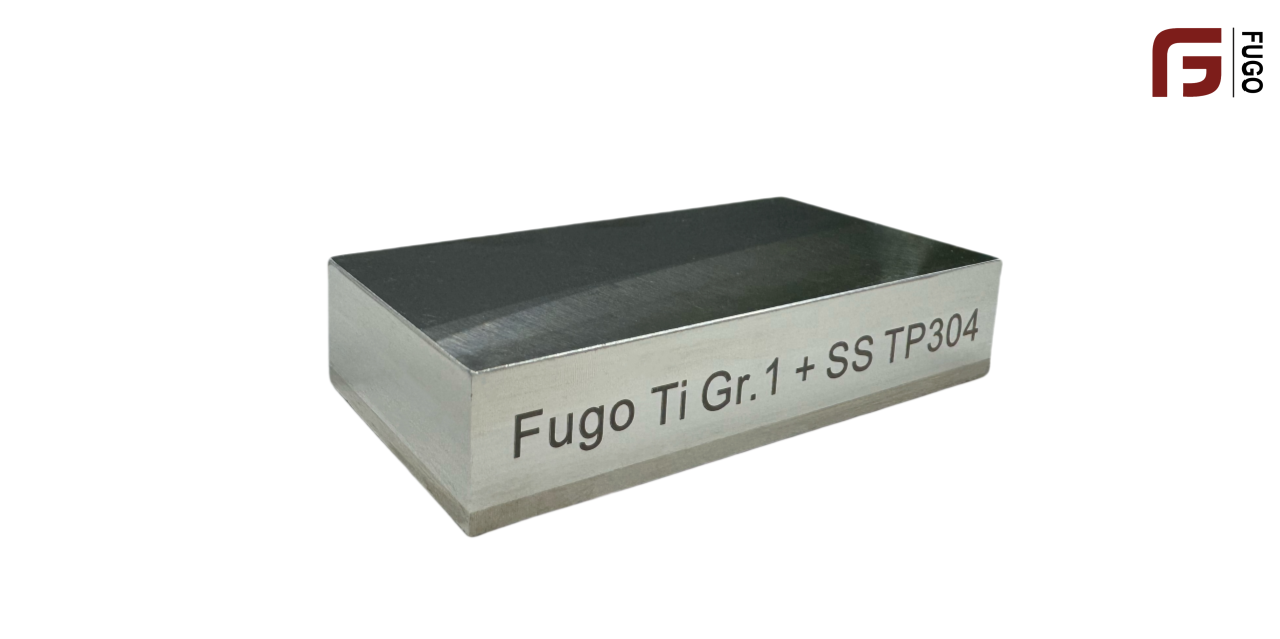

Titanium Clad Stainless Steel Plate:ASTM A516 Gr.70 Carbon Steel+ASTM B265 Gr.2 Titanium
Duplex Clad Carbon Steel Plate:ASME SA516 Gr.70N Carbon Steel +ASME SA240 UNS S32205 Duplex Steel
