The process of making Nickel-Steel Clad Plates involves metallurgically bonding a layer of nickel or nickel alloy onto the surface of a substrate, typically carbon steel or low-alloy steel. This technique is widely used in industries that require the exceptional corrosion resistance, high-temperature performance, and specific chemical properties of nickel, while leveraging the structural strength and cost-effectiveness of steel.
In this article, we'll explore what Nickel-Steel Clad Plate is, how it is performed, its benefits, and its applications across various industries.
Nickel-steel clad plates are composite materials achieved by permanently joining a cladding layer of nickel or nickel alloy (such as Nickel 200, Monel 400, Hastelloy C276, Incoloy 825, or Inconel 625) to a backing steel substrate. This bond is created through various advanced methods, such as:
Explosive Bonding: This involves using controlled explosives to create a high-energy impact, which plastically deforms and fuses the two metals together at their surfaces.
Roll Bonding: In this method, the nickel layer and steel substrate are heated and passed through heavy rollers under high pressure to create a strong, metallurgical bond.
Weld Overlay Cladding: A layer of nickel alloy is welded onto the steel substrate using techniques like strip cladding or submerged arc welding, building up a corrosion-resistant surface.
The choice of method depends on the desired properties, application requirements, and economic factors.
1. Superior Corrosion Resistance
Nickel alloys like C276 (known for exceptional resistance to pitting and crevice corrosion) and 825 (excellent for sulfuric and phosphoric acid environments) offer outstanding resistance to a wide range of corrosive media. The cladding protects the underlying steel from aggressive chemicals, significantly extending equipment lifespan.
2. Cost Efficiency
Using solid nickel or high-grade nickel alloys for entire structures is prohibitively expensive. Cladding allows manufacturers to apply a relatively thin layer of nickel to a cost-effective steel backing, achieving the required performance at a fraction of the cost.
3. High-Temperature Strength and Stability
Many nickel alloys, including C276, retain their mechanical strength and resist oxidation and scaling at very high temperatures. This makes nickel-steel clad plates ideal for applications in furnaces, reformer tubes, and power generation equipment.
4. Improved Mechanical Properties
The composite plate combines the ductility and specialized properties of nickel with the high tensile strength and structural integrity of steel. This results in a durable material capable of withstanding mechanical stress, thermal cycling, and pressure.
5. Versatility in Service Environments
From the versatile resistance of Alloy 825 to the exceptional performance of C276 in harsh oxidizing and reducing conditions, nickel cladding can be tailored for highly specific and demanding service conditions.
The production of nickel-steel clad plates presents several challenges. The high cost of nickel raw material and the complex, energy-intensive bonding processes contribute to a significant initial investment. A critical technical issue is the potential formation of brittle intermetallic compounds at the bond interface, which can weaken the bond if not carefully controlled during manufacturing.
Furthermore, the difference in thermal expansion coefficients between nickel and steel can induce residual stresses, potentially leading to distortion or delamination under thermal cycling. While the nickel layer is highly resistant, if it is penetrated by damage or improper welding, the exposed steel substrate can corrode rapidly.

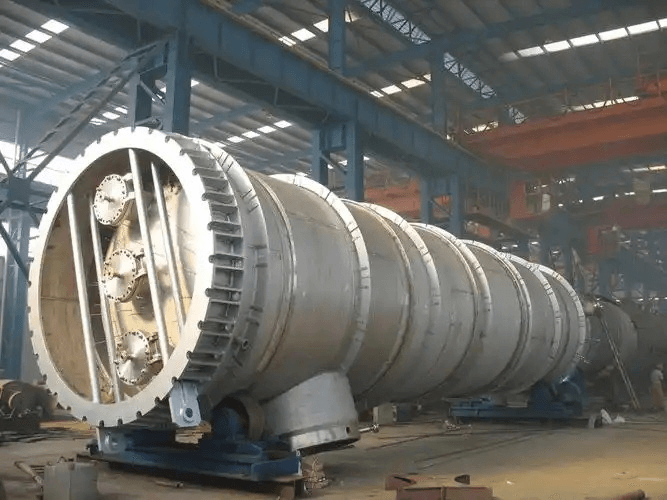

Chemical and Petrochemical Industry: Used in reactors, distillation columns, and heat exchangers handling corrosive acids, alkalis, and salts. Alloys C276 and 825 are particularly prevalent here.
_1762755152_WNo_667d500.png)
Oil and Gas Industry: Applied in pressure vessels, scrubbers, and piping systems for upstream and downstream processing, especially where resistance to sour service (H₂S) is required.

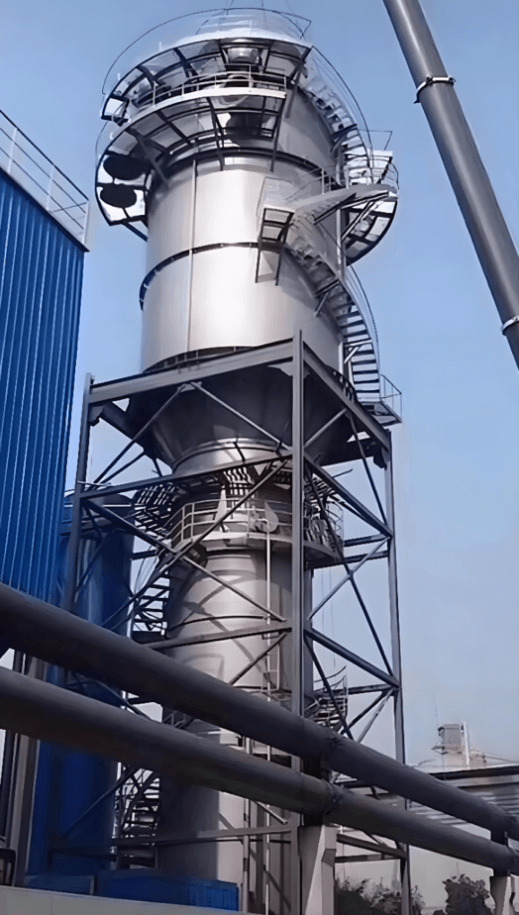

Power Generation: Key component in flue gas desulfurization (FGD) systems, boiler components, and high-temperature heat recovery units.
_1762755215_WNo_519d915.png)
Pharmaceutical Industry: Employed in process vessels and piping where high purity and resistance to cleaning agents are essential.
Marine Engineering: Used in specialized components for ships and offshore platforms that handle corrosive cargo or operate in harsh marine environments.
Fertilizer Industry: Essential in urea and ammonium production equipment.
The strategic use of clad plate technology, specifically nickel-steel composites, provides an optimal engineering solution where superior surface properties must be combined with robust structural integrity and cost-effectiveness. By understanding the various bonding processes, benefits, and potential production challenges, engineers and designers can fully leverage the advantages of this material. As industries continue to push the boundaries of performance in corrosive and high-temperature environments, the nickel-steel clad plate stands out as a critical enabling material, ensuring longevity, safety, and economic efficiency in some of the world's most demanding applications. The continued innovation and refinement in clad plate manufacturing promise to further expand its vital role across the industrial landscape.
