Explosion Clad Plate vs Roll Bonded Clad Plate

A practical guide for pressure vessels and heat exchangers applications

Both processes produce metallurgically bonded clad plate, combining a corrosion resistant working layer with a structural backing. The best choice depends on the material combination, component dimensions and fabrication route—not simply the bonding method.

For custom pressure vessel heads and heat exchanger tube sheets, explosion clad plate often offers the more flexible supply route, especially with specialty alloys, substantial backing thickness or project specific layer dimensions. Roll bonded clad plate remains an effective option for standard, repeat orders that fit an established mill program.

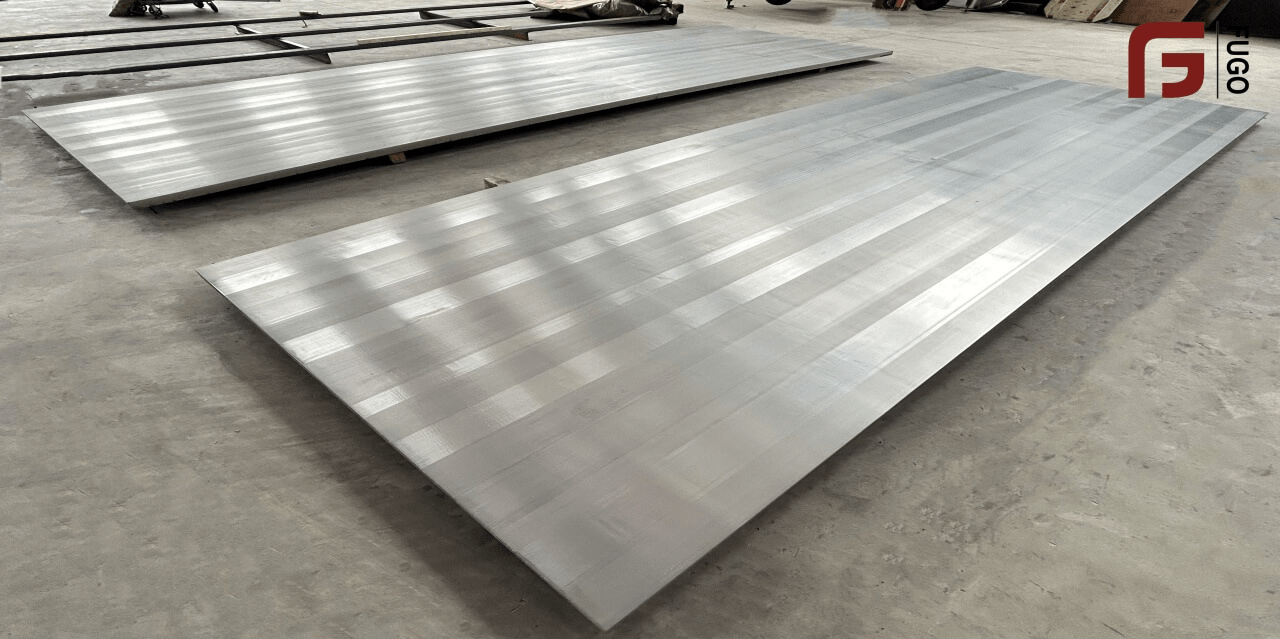

Finished clad plates from FUGO’s product range.

Explosion bonding

A controlled high velocity impact joins prepared metal surfaces. This solid state process avoids bulk fusion, although localized interface heating can occur. It is particularly useful for dissimilar metals, including qualified titanium–steel and nickel alloy–steel systems. Flattening, heat treatment and inspection follow the agreed production route.

Roll bonding

Prepared layers are protected against oxidation, heated and passed through rolls. Pressure and plastic deformation establish the bond while reducing thickness. Hot roll bonding is well established for stainless steel clad steel and selected nickel alloy products, with commercial advantages where dimensions and quantities match the mill’s capabilities.

The decision for equipment manufacturers

For vessel shells in repeat sizes, compare both routes. For custom heads and thick tube sheets, evaluate explosion bonding early. In either case, specify the final usable dimensions, minimum cladding thickness and required condition after forming or machining. Explore the FUGO clad plate range to discuss a suitable material system.

The differences that matter

Compare offers against the same drawing, material grades, inspection scope and delivery condition. The table highlights practical selection tendencies; each supplier must confirm capability for the actual order.

Where explosion bonding has the clearer advantage

Its advantage is the freedom to match the plate to the component: a specialty working layer, a substantial structural backing and dimensions suited to the drawing. That flexibility is particularly valuable for custom heads and tube sheets, where a standard mill product may be a poor fit.

Explosion clad plate for pressure vessel heads

Heads combine a curved pressure boundary with a corrosion resistant process surface. For custom head projects, explosion bonding can provide a practical advantage by allowing the material combination and starting blank to be selected around the component requirements.

Formed heads

Why it is often the preferred starting point

Specialty working layers. Where the process calls for titanium or another difficult dissimilar metal system, explosion bonding can enable a suitable clad blank that is not readily available through a standard rolling program.

Project specific thicknesses. The backing and cladding serve different functions. Selecting each layer around structural needs, forming losses and the final corrosion barrier can be more useful than choosing the nearest standard mill format.

Custom blank supply. Individual or small batches of head blanks may favor a project based bonding route. Confirm usable blank diameter, material yield and forming allowances before deciding whether a larger plate reduces seams or cost.

The advantage is flexibility, not automatic formability

Explosion bonded material must still suit the head geometry and forming procedure. The alloy pair, delivery condition, forming strain and thermal cycle determine feasibility. Roll bonded plate can also be formed successfully when those requirements are met.

Specify the minimum working layer after forming, and agree any subsequent heat treatment and bond examination. The finished head—not just the original flat plate—must meet the drawing and applicable construction requirements.

For a custom clad head, discuss plate selection and FUGO head forming services together. Submit the head profile, diameter, layer thicknesses, material grades and design requirements so the proposed supply route addresses the finished component.

Explosion clad plate for heat exchanger tube sheets

Tube sheets often need a substantial backing section, precise machining and a selected alloy on the process face. Explosion bonding is especially attractive when these requirements create a thick, custom component outside a convenient standard mill offering.

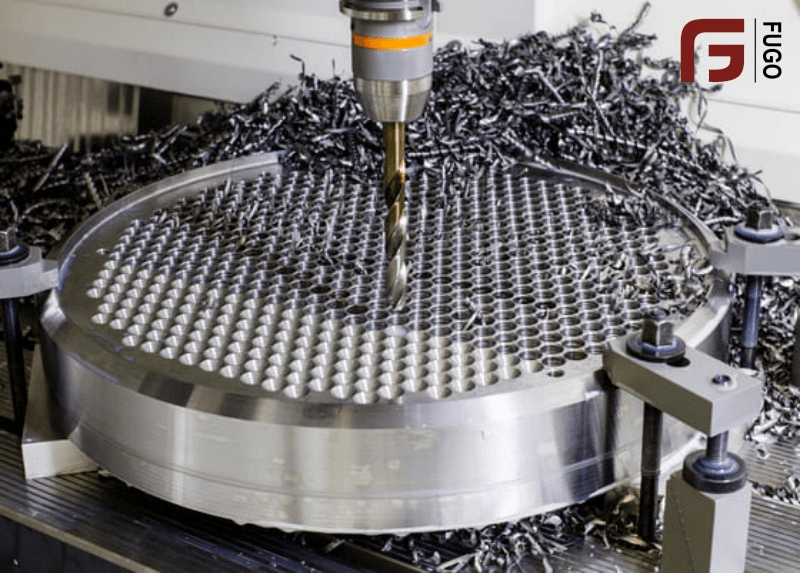

Tube sheet drilling

Why explosion bonding is a strong fit

Thick structural backing. A selected working layer can be bonded to a substantial backing plate. This allows the material configuration to follow the tube sheet design rather than a standard rolled layer ratio.

Dissimilar metal combinations. Qualified titanium–steel, nickel alloy–steel and stainless steel–steel systems provide options for different process fluids. The corrosion environment determines the alloy; the bonding route makes the selected combination practical to supply.

Machining allowance. The cladding thickness can be specified around the required final face, grooves and tube joint details. This is particularly useful where machining removes part of the working layer.

Specify the finished tube sheet

Identify which faces and holes contact each fluid. Provide the tube layout, hole tolerances, sealing details and whether the tubes will be expanded, welded or both. Confirm the minimum cladding thickness after machining and how the joint maintains the intended corrosion barrier.

Bond inspection and dimensional checks address different requirements. Agree the examination scope, acceptance criteria and traceability before drilling. Roll bonded material remains an option when its available configuration meets the same requirements.

For thick or specialty alloy tube sheets, start with an explosion clad proposal and coordinate it with FUGO tube sheet drilling and machining. Comparing the processed component scope is more useful than comparing raw plate price alone.

Choose FUGO for your equipment project

FUGO serves pressure vessel and heat exchanger manufacturers with explosion bonded and roll bonded clad materials. Our focus is a plate configuration that suits the equipment: the right working alloy, structural backing and processing scope.

Plate supply connected to component processing

FUGO’s offering includes clad plate, tube sheet machining and coordinated head forming services. For custom heads and tube sheets, discuss explosion bonding first where specialty materials or thickness requirements make it the stronger fit. For standard repeat plate orders, request a roll bonded alternative where appropriate.

Keep the technical specification clear

Agree bond examination, mechanical testing where required, dimensional tolerances and material traceability. For heads, include the forming and heat treatment sequence. For tube sheets, include the final machining allowance and tube joint requirements. These details make quotations comparable and reduce downstream clarification.

Send a focused inquiry

Include the backing and cladding grades; separate layer thicknesses; plate size or component drawing; quantity; applicable standard; inspection requirements; processing scope; and required delivery date. Add the service conditions and planned fabrication heat cycles where available.

For pressure vessel heads and heat exchanger tube sheets, ask FUGO to evaluate an explosion clad solution around your finished component. Contact FUGO or email sales@fugo-tech.com to request a project specific quotation.
